6.6KV 1250A 2000A Metal Enclosed Mv Switchgear Panel IP4X

Product Categories
Knkong Electric Co.,Ltd
Contact Now

6.6KV 1250A 2000A Metal Enclosed Mv Switchgear Panel IP4X

Brand Name : Knkong

Model Number : KYN28A-3.3KV

Certification : IEC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 100 Unit per month

Delivery Time : 15 working days

Packaging Details : Standard export packaging

Voltage : 3.6~24kV,3P,AC 50/60Hz

Current : 630-2000A

Frequency : 50/60Hz

Manufactory : KNKONG

OEM/ODM : Available

Original : Zhengzhou, CHINA

Contact Now

KYN28 GB IEC standard 6.6KV 12KV 24KV 630A 1250A 2000A Metal Enclosed panel
Voltage: 3.3KV 6.6KV 12KV 24KV
Current: 630A 1250A 2000A
Frequency: 50/60Hz
General
KYN28-12KV indoor use switchgear produced by KNKONG-ELECTRIC, its rated voltage 3.6～24kV, three-phase, AC, 50/60Hz, single bus section system. The KYN28 series switchgear made by our KNKONG-ELECTRIC can not only use the VS1 series vacuum circuit breaker made in China but also can be equipped with ABB's VD4, Siemens ZN65A 3AH5, GE's VB2, and other vacuum circuit breakers and components.

Fully type-tested

The KYN28 switchgear produced by KNKONG-ELECTRIC has passed all the tests required by the International (IEC) standard. Before leaving the factory, each switchgear undergoes rigorous tests designed to check the function of the switchgear according to the specific characteristics of each device.

Technical data

No. Item Unit Parameter
1 Rated voltage kV 3.6~24
2 Rated frequency Hz 50/60
3 Rated current A 630,1250,1600,2000,2500,3150,4000
4 Branch busbar Rated current 630,1250,1600,2000,2500,3150,4000
5 The main busbar Rated current 630,1250,1600,2000,2500,3150,4000
6

1min Power frequency

withstand voltage

 wet KV 38 50/60
dry 48 60/65
7 Lightning impulse withstand voltage kV 75 95/125
8 Rated short circuit breaking current (peak) KA 40/50/63/80/100
9 Short-time withstand current(4s) 20/25/31.5/40
10 Protection type IP4X for housing

Product Tags:

Metal Enclosed Mv Switchgear Panel



1250A Mv Switchgear Panel



6.6KV Mv Switchgear Panel


Wholesale 6.6KV 1250A 2000A Metal Enclosed Mv Switchgear Panel IP4X from china suppliers

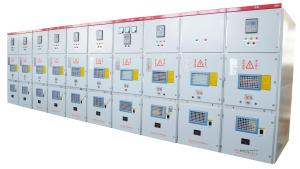

6.6KV 1250A 2000A Metal Enclosed Mv Switchgear Panel IP4X Images
